Coil on Plug Ignition System Trainer

Coil on Plug Ignition System Trainer

Product Code: CHINAELABC2630004

Categories: Thermal Engineering Lab Equipment

Tags: Coil on Plug Ignition System Trainer

2554

Download PDF Enquire Now
  • Description

Coil on Plug Ignition System Trainer



Specification

FEATURES:

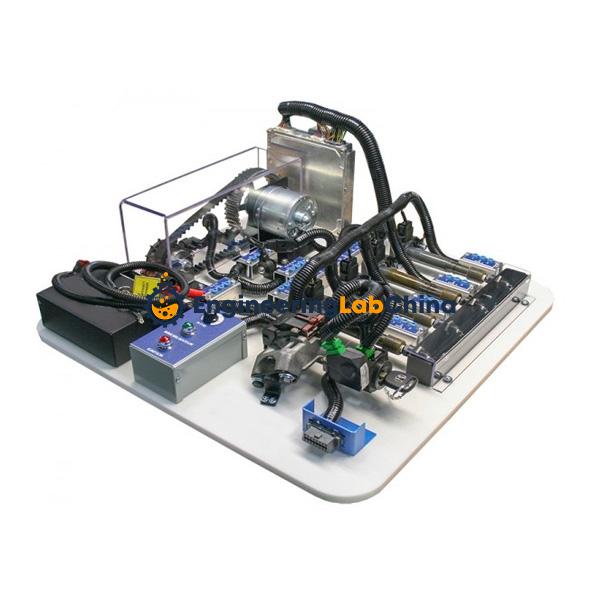

Ability to visualize the operation of a direct ignition system using coil-on-plug ignition technology
Ability to test and verify a basic ignition circuit without distributor
Four operational faults can be inserted to promote student diagnostic troubleshooting competencies
Includes wiring schematics.

SPECIFICATIONS:
Engine Control Module (ECM)
Crankshaft position (CKP) sensor and camshaft position (CMP) sensor
Ignition coils
Spark plugs
Fault box with 4 faults
Electric motor driven crankshaft and/or camshaft sprockets
OBDII data link connector
Test points for diagnosis
